Product Description
I. Vehicle Positioning

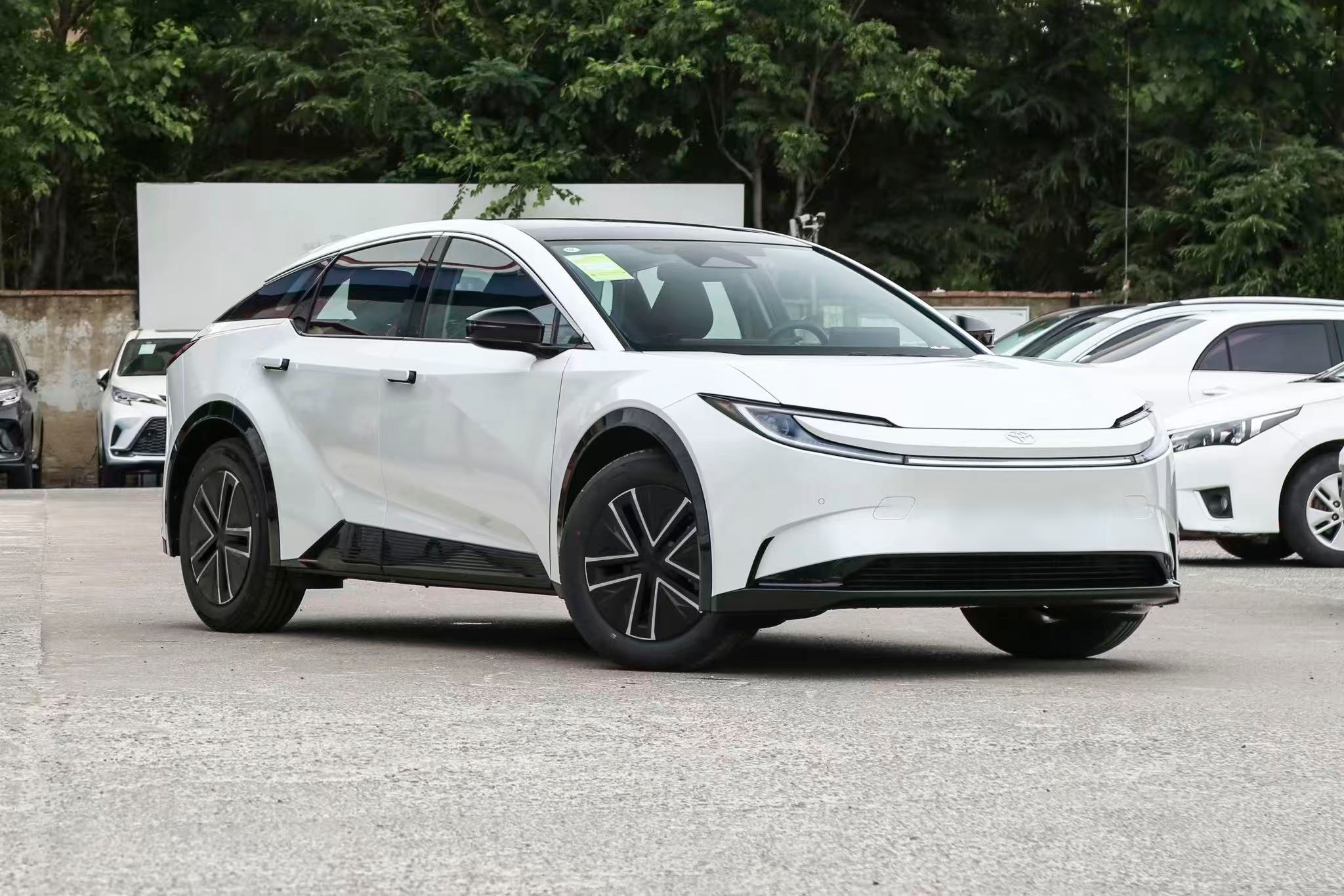

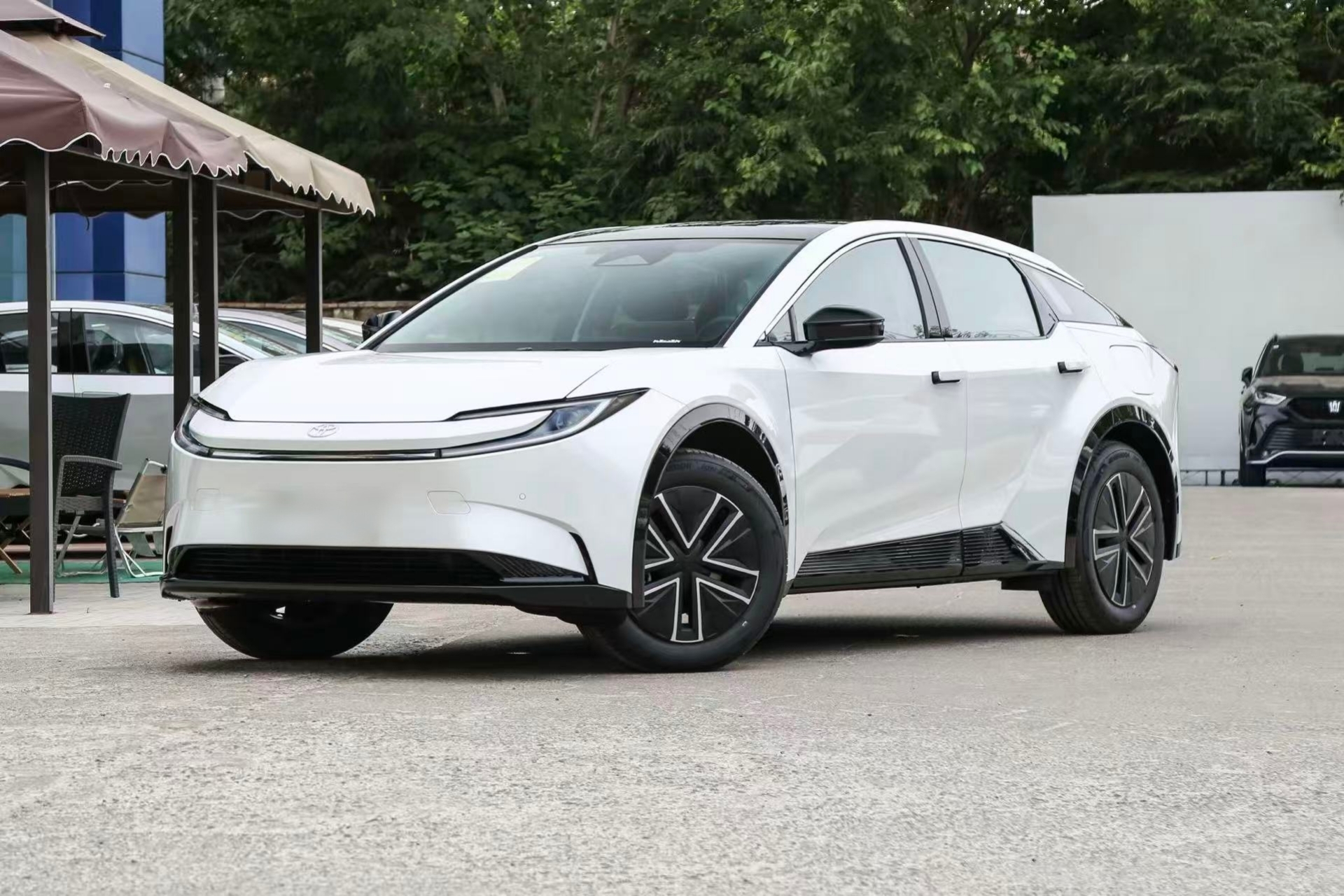

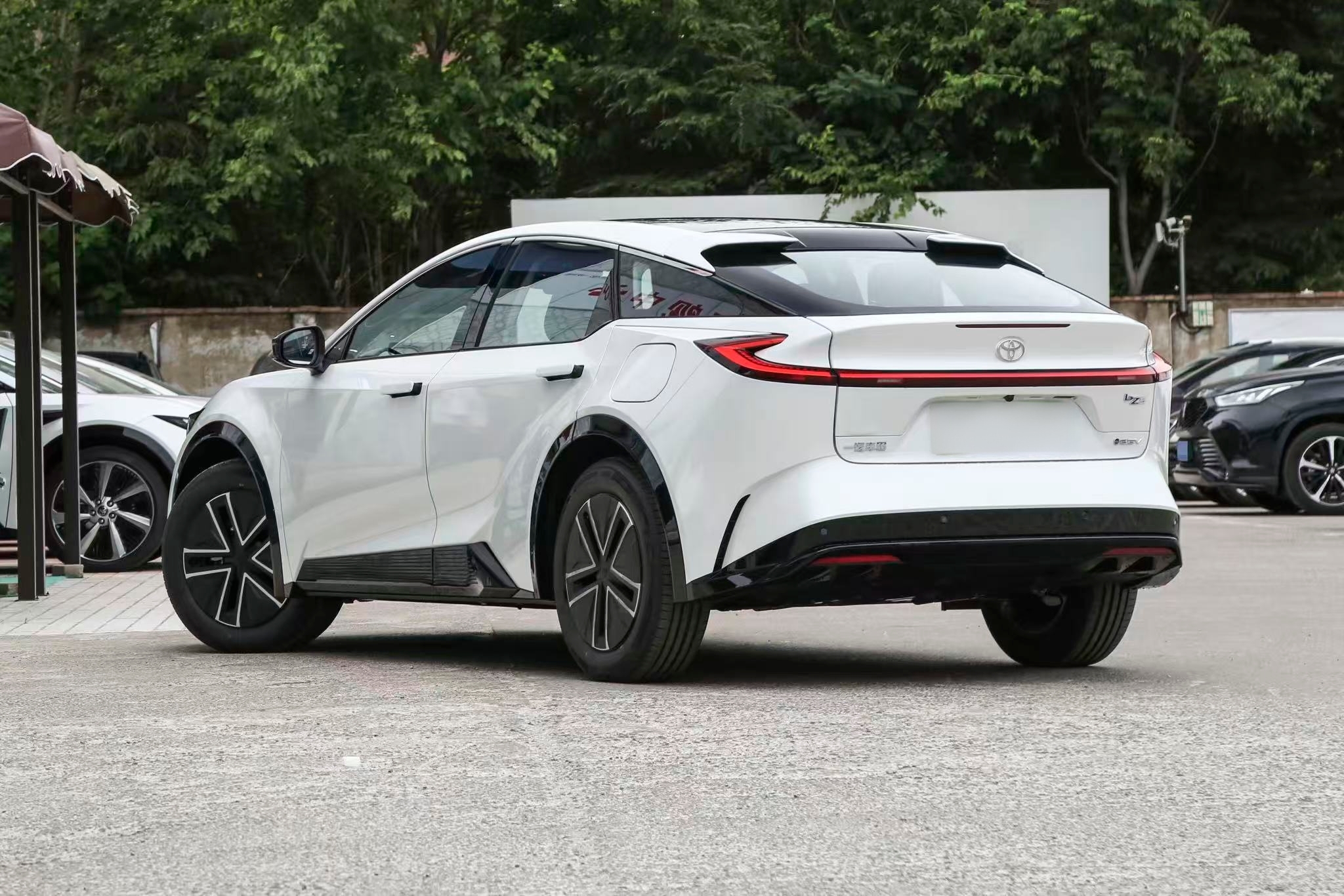

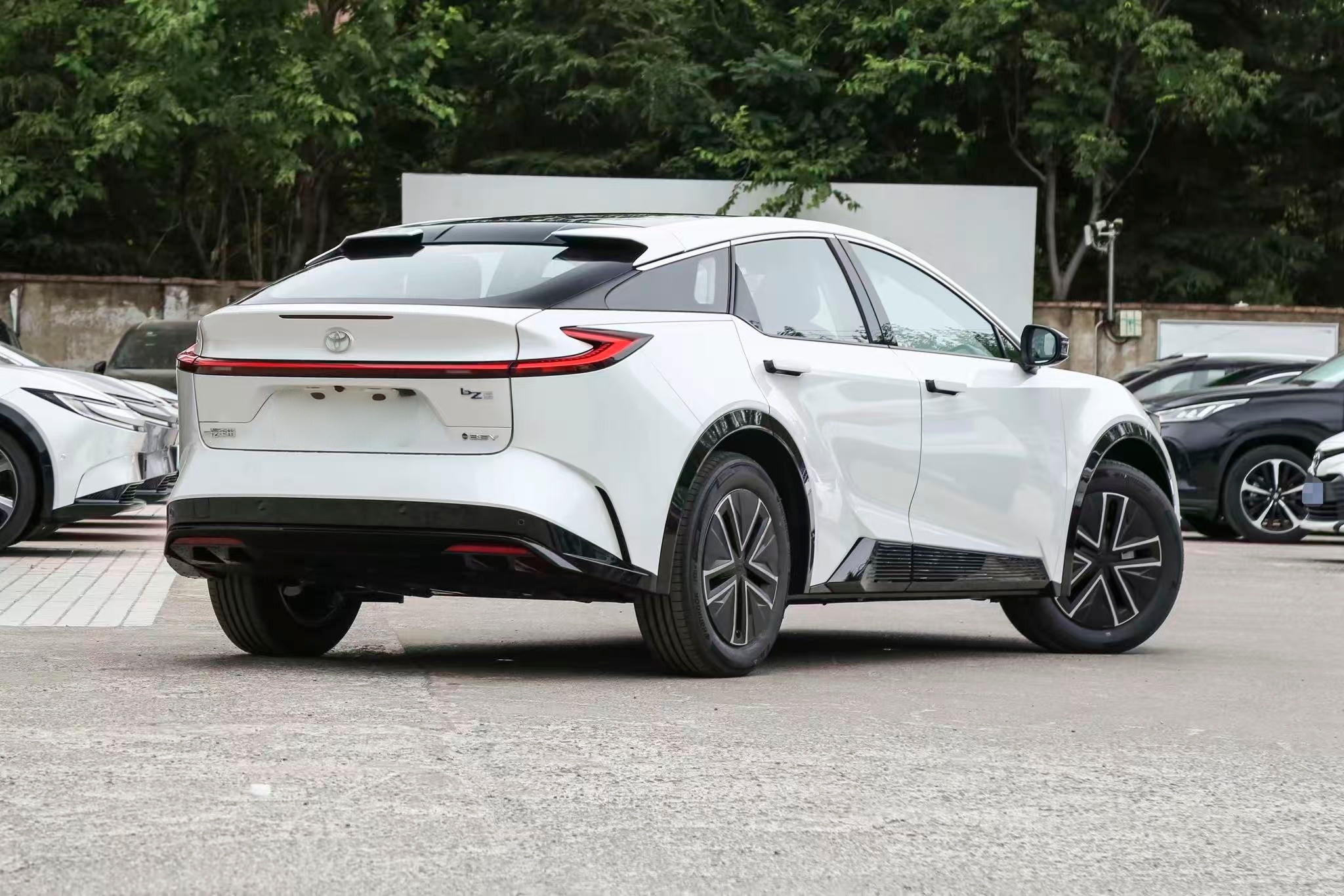

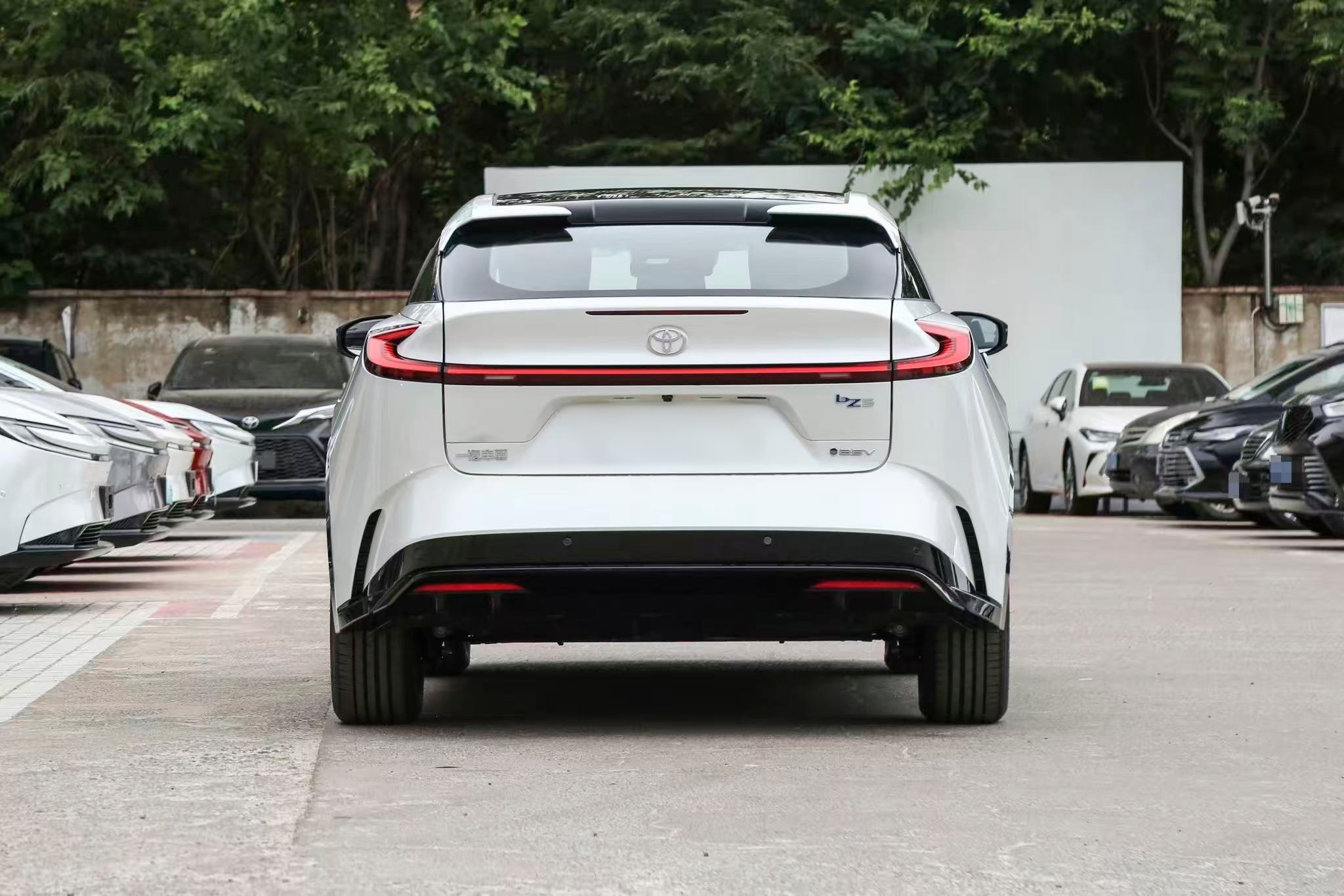

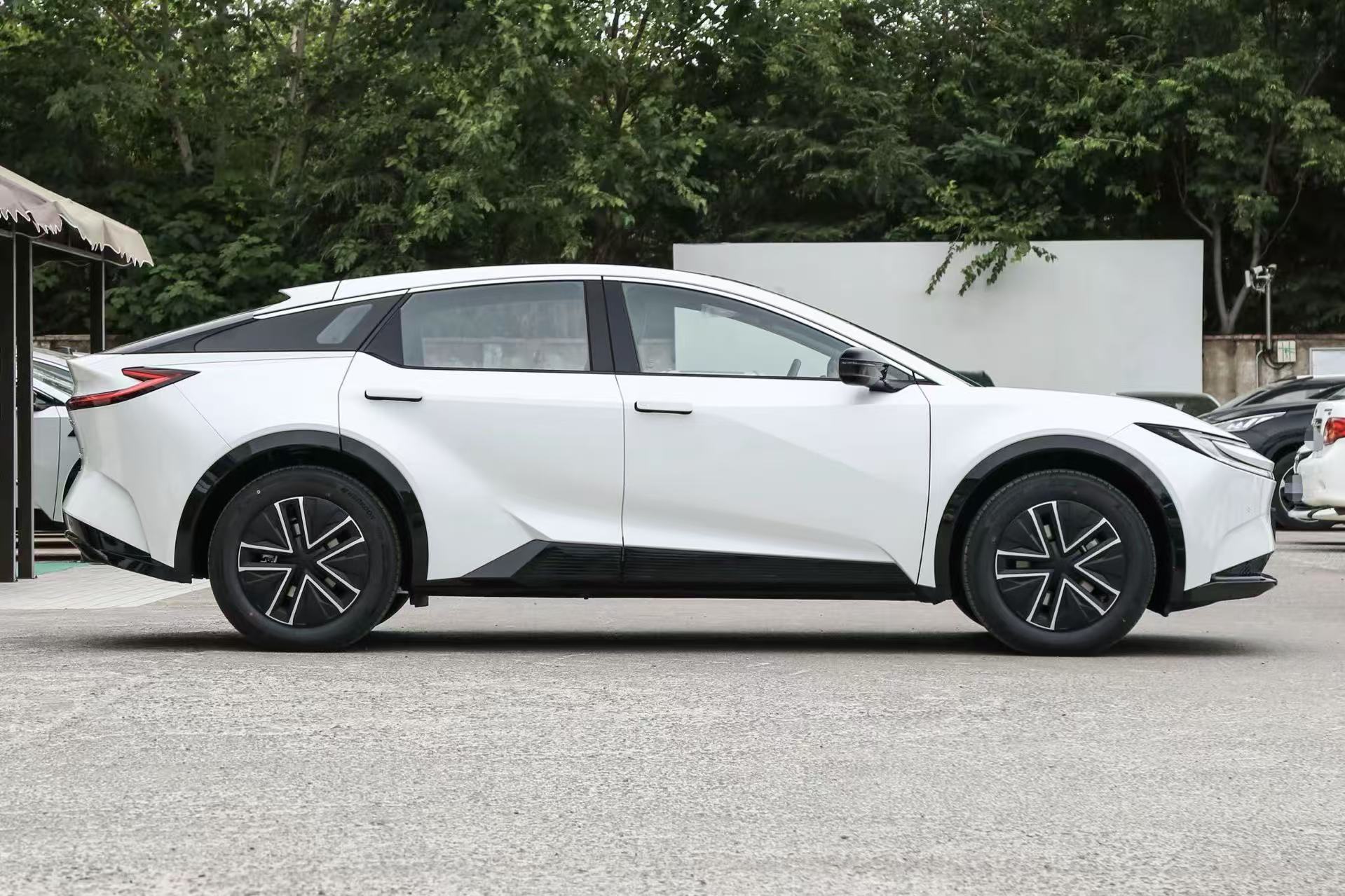

FAW Toyota bZ5 is an e-TNGA all-electric mid-size 5-door 5-seat coupe SUV jointly developed by Toyota, BYD and FAW. It is the second core model of Toyota bZ family, fully equipped with BYD Fudi Blade LFP battery, designed for long-distance family travel and daily urban commuting.
II. Chassis & Body

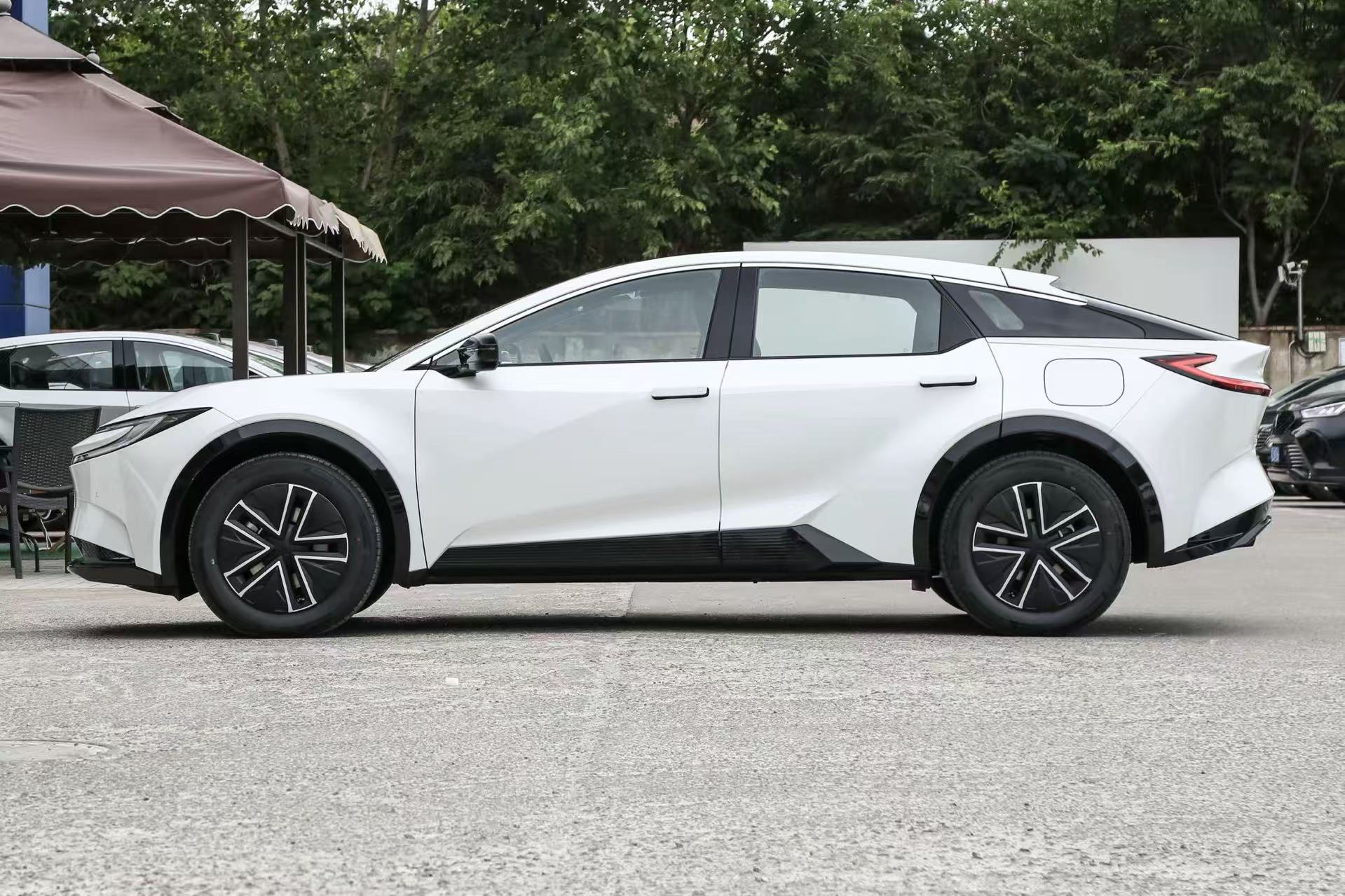

- Dimensions: 4780×1866×1510mm, wheelbase 2880mm (premium B+ segment wheelbase), fastback crossover styling, ground clearance 175mm
- Suspension: Front MacPherson independent suspension + rear multi-link independent suspension, chassis tuned by Toyota
- Storage space: Standard luggage capacity 463L, expandable to 1100L via 6/4 split-folding rear seats; fully flat rear floor, 4L under-center-console storage; standard fixed 1.44㎡ silver-coated panoramic canopy
- Wheels: Entry JOY trim with 225/60 R18 aluminum alloy wheels; mid & high specs fitted with 245/45 R21 sport wheels
- Charging layout: DC & AC charging ports integrated on left rear fender; V2L external power discharge standard across all trims
III. Safety Configuration (Basic safety standard for all grades, premium ADAS on high-end variants)
1. Passive Safety
Standard 9 airbags (driver & front passenger airbags, front & rear side airbags, full-length curtain airbags, driver’s knee airbag); cage-type body with 27% hot-stamped ultra-high-strength steel, torsional rigidity up to 28000N·m/deg; direct TPMS, puncture-resistant safety structure for Blade Battery, ESP Vehicle Stability Control and HAC Hill-start Assist Control.
2. Intelligent Driving System
- Base trims (JOY/PRO): Standard TSS3.0 Level 2 ADAS: DRCC full-speed ACC, LTA Lane Tracing Assist, PCS Pre-Collision Braking, AHB Automatic High Beam, LCA Blind Spot Alert, RCTA Rear Cross Traffic Alert
- Premium Zhixing/MAX trims: Dual-system high-level ADAS (Toyota Pilot + Momenta 5.0): 1 LiDAR +13 cameras +5 millimeter-wave radars +12 ultrasonic radars, dual redundant chips with total computing power of 544TOPS; supports urban navigation, highway NOA, memory parking, auto lane change & door opening warning, in-cabin occupant monitoring.
IV. Powertrain & Three-Electric System (Front-wheel drive standard for all versions)
Front-mounted FWD permanent magnet synchronous motor, peak output 200kW (272PS), peak torque 330N·m; 0-100km/h acceleration:7.5s, top speed 160km/h.
Blade LFP battery options:
- 550km version: 65.28kWh, CLTC range 550km; 90kW DC fast charging (30%~80%: approx.27 mins)
- 630km version:73.98kWh, CLTC range 630km; 90kW DC fast charging (30%~80%: approx.29 mins)Standard heat pump A/C and battery preheating system to optimize low-temperature driving range performance.
V. Comfort & Intelligent Features (Standard across all trims)

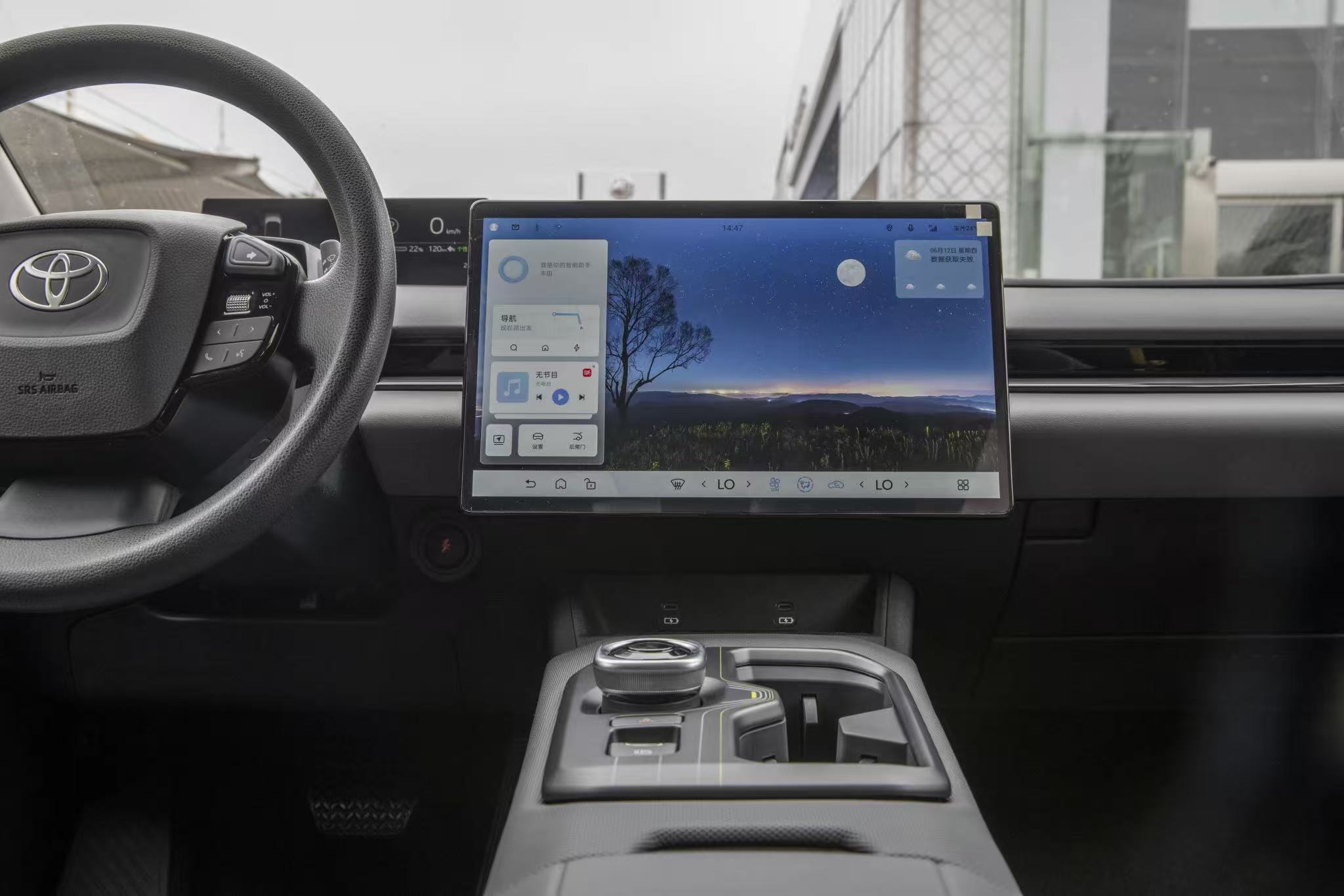

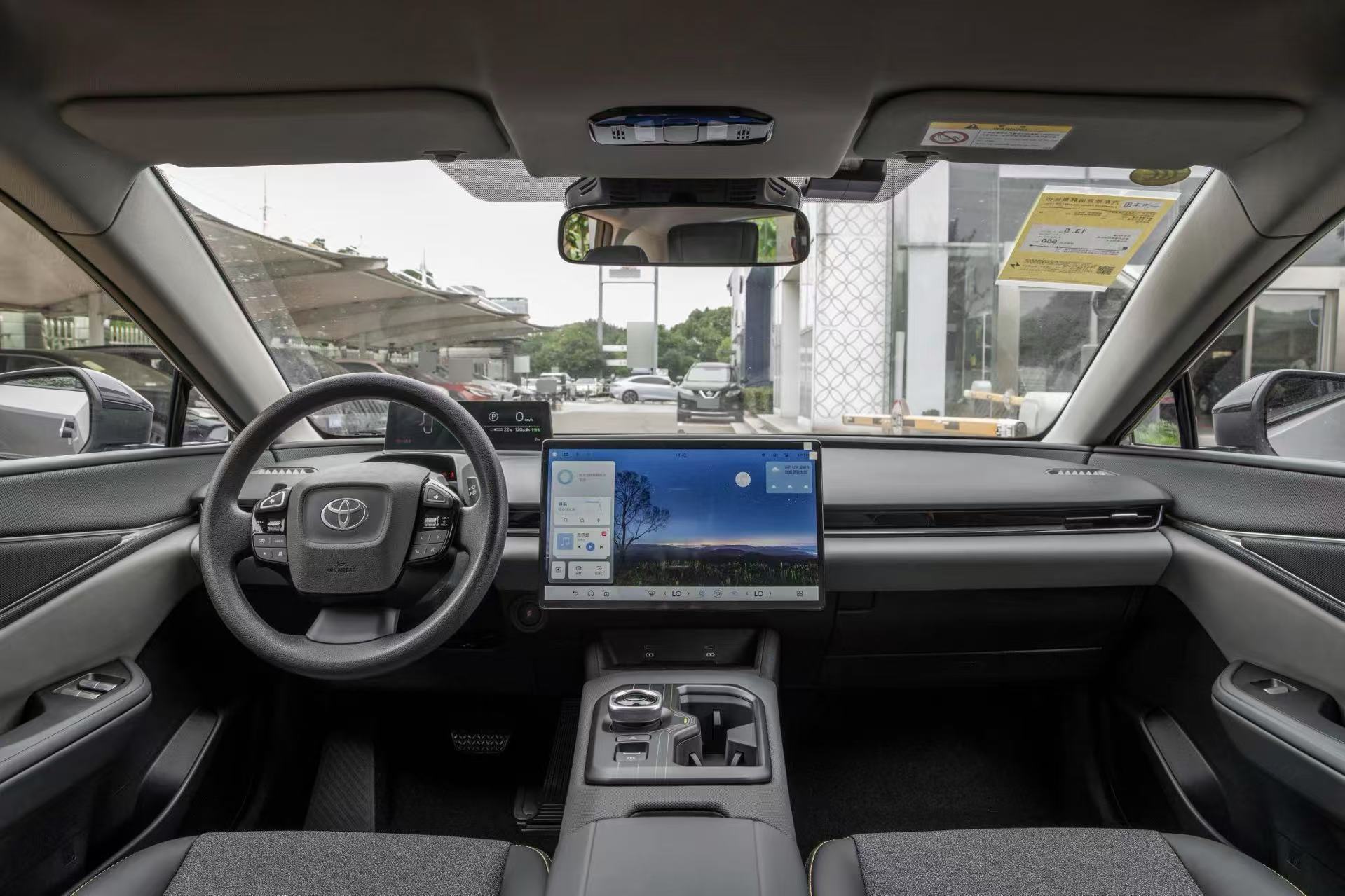

Flush pop-out door handles, smart keyless entry & push-button start, dual-zone automatic heat pump air conditioning, front wireless phone charging, multifunctional leather steering wheel, full LED projector headlamps, 15.6-inch 2.5K vertical touchscreen +12-inch LCD instrument cluster, Qualcomm 8155 chip, four-zone voice control, CarPlay, vehicle-wide OTA remote upgrade, 256-color ambient interior lighting, rearview camera plus front & rear parking sensors.
